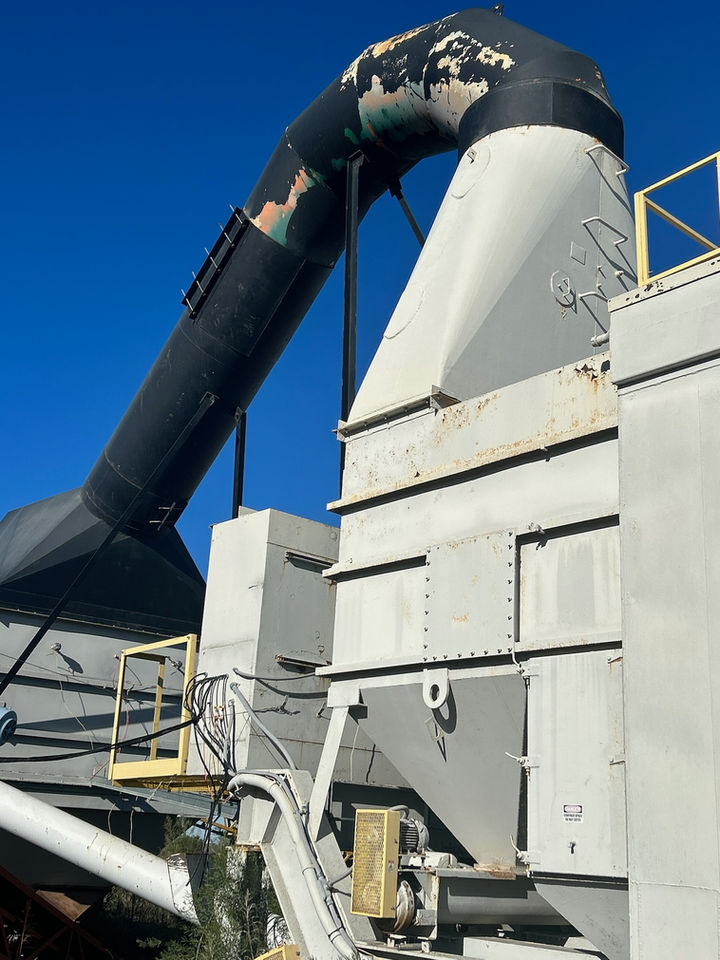

Portable Vulcan Pulse-Jet Baghouse System
Approx. 40,000 CFM Nominal Capacity | High-Temperature Dust Collection
This portable Vulcan pulse-jet baghouse system is designed for high-volume, high-temperature industrial applications including frac sand, aggregate, minerals processing, and rotary drying operations. Engineered as part of a complete portable drying system, this unit delivers efficient particulate capture with balanced airflow, pressure control, and thermal tolerance.
System Capacity
- Nominal Capacity: Approx. 40,000 CFM
- Designed Airflow: ~38,000–39,000 ACFM (per OEM engineering)
Baghouse Specifications
- Type: Pulse-Jet Baghouse
- Construction: Carbon Steel (C.S.)
- Vapor Flow (Inlet): 38,893 ACFM
- Total Filter Area: 8,796 sq. ft.
- Air-to-Cloth Ratio: 4.3 FPM
- Bag Temperature Rating: Up to 400°F
- Filter Media: Aramid (alkali-resistant)
Induced Draft Fan & Drive Motor
- Airflow Capacity: 37,801 CFM
- Static Pressure: 10” W.C.
- Calculated Fan Load: 91.5 HP
- Installed Motor: 200 HP (oversized for operational margin)
Motor Details
- Manufacturer: Worldwide Electric Corporation
- Motor Type: Premium Efficiency, 3-Phase Induction
- Horsepower: 200 HP
- Voltage: 230 / 460 V
- Frequency: 60 Hz
- Speed: 1,790 RPM
- Efficiency: 96.5% (¾ load)
- Service Factor: 1.25
- Power Factor: 0.85
- Frame: 445/7T
- Enclosure: TEFC, IP55
- Insulation Class: F
- NEMA Design: B
- Duty Rating: Continuous, 40°C Ambient
- Hazardous Location Rating:
- Class I, Division 2, Groups A, B, C, D
- Class I, Zone 2, IIC
- Bearings: NU319C3 (DE) / 6313C3 (ODE)
- Manufacture Date: December 2019
Ductwork
- Configuration: 39” x 39”
- Material: 12-Gauge Carbon Steel
- Average Air Velocity: 3,678 FPM
Estimated System Pressure Drops
- Rotary Dryer: 0.5” W.C.
- Baghouse: 5.0” W.C.
- Ductwork: 2.0” W.C.
- Stack Discharge: 0.0” W.C.
